LUHMES analysis with PerturbVI¶
Here, we fit the LUHMES CROP Seq data by Lalli et al. with PerturbVI and analyze the factor effects, gene loadings, differentially expressed genes (DEGs), and neuronal GO enrichment.
The dataset contains 14 perturbations and 1 Nontargeting control, with 8,708 cells and 6,000 modeled genes. The saved fit uses 20 factors, 1,000 loading components per factor, and PCA initialization.
! uv pip install perturbvi matplotlib
import pickle
from pathlib import Path
import matplotlib.pyplot as plt
import pandas as pd
from IPython.display import display, Image
import jax
jax.config.update("jax_enable_x64", True)
1. Read the processed inputs¶
| File | Contents |
|---|---|
data/luhmes_exp.csv |
8,708 cells x 6,000 genes; processed expression with Ensembl IDs |
data/luhmes_G.csv |
Binary assignments for 14 perturbations and 1 Nontargeting control across 8,708 cells |
data/top6k_genes.csv |
IDs and names for the 6,000 modeled genes |
Expression and perturbation assignments share cell identifiers in the first column. Expression is already covariate-corrected and scaled.
Inputs follow the GSFA LUHMES preprocessing, starting from GSE142078.
from perturbvi import fit_screen, PerturbData, save_results
data_dir = Path("data") # change based on where the data is stored
result_dir = Path("luhmes_out")
figure_dir = Path("figures")
result_dir.mkdir(parents=True, exist_ok=True)
figure_dir.mkdir(parents=True, exist_ok=True)
X = pd.read_csv(data_dir / "luhmes_exp.csv", index_col=0)
G = pd.read_csv(data_dir / "luhmes_G.csv", index_col=0)
top6k_genes = pd.read_csv(data_dir / "top6k_genes.csv")
print(
f"expression: {X.shape}; "
f"perturbations: {G.shape}; "
f"genes: {top6k_genes.shape}"
)
X.iloc[:4, :2]
G.iloc[:4, :2]
top6k_genes.head()
2. Fit and save¶
Retain all 14 perturbations and the 1 Nontargeting control. fit_screen() centers genes; standardize=False by default preserves the existing scale.
z_dim sets the factor count; l_dim sets loading components per factor.
data = PerturbData(X=X, G=G)
# if we had covariates, we would pass them in here as well
# covariates = pd.read_csv(data_dir / "covariates.csv", index_col=0)
# covariates = covariates.loc[X.index, ["batch", "percent_mito"]]
# covariates["batch"] = covariates["batch"].astype("category")
# data = PerturbData(X=X, G=G, covariates=covariates)
# fit_screen automatically regresses covariates out of expression before fitting.
fit = fit_screen(
data,
z_dim=20,
l_dim=1000,
init="pca",
)
save_results(fit, result_dir)
del fit
3. Compute LFSR¶
LFSR (local false sign rate) measures uncertainty in an overall effect's sign. The code below uses 2,000 posterior draws and the default seed (0).
from perturbvi import estimate_lfsr
LFSR_BW = estimate_lfsr(result_dir, draws=2000)
LFSR_BW.to_csv(result_dir / "LFSR_BW.csv")
Alternatively, compute and save LFSR from the command line:
perturbvi lfsr luhmes_out --draws 2000 --seed 0
This also writes luhmes_out/LFSR_BW.csv.
4. Load the model¶
model.pkl contains the fitted posterior and gene/perturbation names. The plotting sections read its matching CSV summaries.
| File | Rows x columns | Contents |
|---|---|---|
W.csv |
Factors x genes | Inclusion-weighted posterior mean loadings |
PIP_W.csv |
Factors x genes | Loading inclusion probabilities |
PVE.csv |
Factors x 1 | Per-factor expression variance summary |
B.csv |
Perturbations x factors | Inclusion-weighted mean effects on factors |
PIP_B.csv |
Perturbations x factors | Coefficient inclusion probabilities |
BW.csv |
Perturbations x genes | Overall effects, B @ W |
LFSR_BW.csv |
Perturbations x genes | Overall-effect sign uncertainty |
with (result_dir / "model.pkl").open("rb") as fh:
model = pickle.load(fh)
5. Set up plotting¶
The CSVs already contain row and column labels. Use index_col=0 so pandas reads the first column as row labels.
scale="asinh" compresses large magnitudes in the color scale so extreme values do not dominate, making smaller effects easier to distinguish. Signs and ordering are preserved, and legend labels show values in the original units. Each panel scales to its displayed values. Plots are saved to figures/ and displayed inline.
from perturbvi import plotting as pp
def save(fig, name):
fig.savefig(figure_dir / f"{name}.png", dpi=300)
display(Image(filename=str(figure_dir / f"{name}.png")))
plt.close(fig)
6. Perturbation effects on factors¶
Red indicates positive effects; blue indicates negative effects. factor_0 is displayed as "Factor 1"; subsets retain the original labels.
Full matrix: 14 perturbations across all 20 factors; the Nontargeting control is omitted.
B = pd.read_csv(result_dir / "B.csv", index_col=0)
fig = pp.plot_factor_effects(
B,
perturbations=B.index.drop("Nontargeting").tolist(),
show_significance=False,
scale="asinh",
)
save(fig, "01_factor_effects_full")
With significance: the same matrix, with dots marking coefficient PIP > 0.95.
PIP_B = pd.read_csv(result_dir / "PIP_B.csv", index_col=0)
fig = pp.plot_factor_effects(
B,
perturbations=B.index.drop("Nontargeting").tolist(),
scale="asinh",
pip=PIP_B,
show_significance=True, # must be True to show significance based on pip
)
save(fig, "01_factor_effects_with_pip")
Subset: six selected perturbations across eleven factors.
fig = pp.plot_factor_effects(
B,
perturbations=["ADNP", "ARID1B", "ASH1L", "CHD2", "PTEN", "SETD5"],
factors=["factor_1", "factor_2", "factor_3", "factor_4", "factor_6", "factor_8",
"factor_9", "factor_11", "factor_12", "factor_14", "factor_16"],
show_significance=False,
scale="asinh",
)
save(fig, "01_factor_effects_subset")
7. Provide marker gene annotations¶
The 30 selected marker genes are a subset of the 6,000 modeled genes. gene_annotations.csv contains:
gene_ID: fitted identifier, matchingW.csvandBW.csv.gene_name: display label, typically a gene symbol.annotation: category used for grouping and the legend.
Groups follow annotation-file order. Without annotations, plots show gene IDs. Marker selection combines biological evidence and fitted effects; it does not independently establish neuronal specificity.
# 30 gene annotations
annotations = pd.read_csv(result_dir / "gene_annotations.csv")
selected_30_genes = annotations["gene_ID"].tolist()
print(annotations.head(n=15))
8. Gene loadings on factors¶
Loadings already include inclusion weighting. Interpret them alongside perturbation effects: reversing both signs for a factor leaves its overall gene contribution unchanged.
Full matrix: 30 selected marker genes across all 20 factors.
W = pd.read_csv(result_dir / "W.csv", index_col=0)
fig = pp.plot_gene_loadings(
W,
genes=selected_30_genes,
gene_annotations=annotations,
show_significance=False,
scale="asinh",
)
save(fig, "02_gene_loadings_all_factors")
With significance: the same matrix, with dots marking loading PIP > 0.95.
PIP_W = pd.read_csv(result_dir / "PIP_W.csv", index_col=0)
fig = pp.plot_gene_loadings(
W,
genes=selected_30_genes,
gene_annotations=annotations,
pip=PIP_W,
show_significance=True,
scale="asinh",
)
save(fig, "02_gene_loadings_with_pip")
Subset: the same 30 marker genes across eleven selected factors.
fig = pp.plot_gene_loadings(
W,
genes=selected_30_genes,
factors=["factor_1", "factor_2", "factor_3", "factor_4", "factor_6", "factor_8",
"factor_9", "factor_11", "factor_12", "factor_14", "factor_16"],
gene_annotations=annotations,
show_significance=False,
scale="asinh",
)
save(fig, "02_gene_loadings_subset")
9. Overall perturbation effects on genes¶
BW = B @ W combines all fitted factors, including those omitted from plotting subsets. Effects are on the processed expression scale, not log fold changes. Colors show effect sizes; dots indicate significance.
overall = B @ W
Full matrix: 30 selected marker genes across all 14 perturbations.
BW = pd.read_csv(result_dir / "BW.csv", index_col=0)
fig = pp.plot_gene_effects(
BW,
genes=selected_30_genes,
perturbations=BW.index.drop("Nontargeting").tolist(),
gene_annotations=annotations,
show_significance=False,
scale="asinh",
)
fig.axes[0].set_ylabel("Neuronal marker genes")
save(fig, "03_gene_effects_all_targets")
With significance: the same matrix, with dots marking LFSR < 0.05.
LFSR_BW = pd.read_csv(result_dir / "LFSR_BW.csv", index_col=0)
fig = pp.plot_gene_effects(
BW,
genes=selected_30_genes,
perturbations=BW.index.drop("Nontargeting").tolist(),
gene_annotations=annotations,
scale="asinh",
lfsr=LFSR_BW,
show_significance=True, # must be True to show significance based on lfsr
)
save(fig, "03_gene_effects_all_targets_with_lfsr")
Subset: the same 30 marker genes across six selected perturbations.
fig = pp.plot_gene_effects(
BW,
genes=selected_30_genes,
perturbations=["ADNP", "ARID1B", "ASH1L", "CHD2", "PTEN", "SETD5"],
gene_annotations=annotations,
show_significance=False,
scale="asinh",
)
fig.axes[0].set_ylabel("Neuronal marker genes")
save(fig, "03_gene_effects_subset")
10. DEGs per factor¶
Count genes with loading PIP > 0.95 for each factor. These are factor-associated genes; perturbation DEGs below use LFSR < 0.05. A gene may be counted for multiple factors.
PIP_W = pd.read_csv(result_dir / "PIP_W.csv", index_col=0)
factor_degs = (PIP_W > 0.95).sum(axis=1)
factor_labels = [str(int(factor.removeprefix("factor_")) + 1)
for factor in factor_degs.index]
fig, ax = plt.subplots(figsize=(7, 2.8))
ax.bar(factor_labels, factor_degs.values, color="#FF7F00", width=0.72)
ax.set(xlabel="Factors", ylabel="Genes (Loading PIP > 0.95)")
peak = max(factor_degs.max(), 1)
ax.set_ylim(0, 1.14 * peak)
ax.spines[["top", "right"]].set_visible(False)
ax.tick_params(axis="x", length=0, labelsize=7.5)
ax.tick_params(axis="y", labelsize=7.5)
ax.xaxis.label.set_fontsize(9)
ax.yaxis.label.set_fontsize(9)
ax.xaxis.labelpad = ax.yaxis.labelpad = 6
for i, value in enumerate(factor_degs):
ax.text(i, value + 0.018 * peak, str(value),
ha="center", va="bottom", fontsize=6.5)
fig.subplots_adjust(left=0.10, right=0.99, bottom=0.18, top=0.95)
save(fig, "04_degs_per_factor")
11. DEGs per perturbation¶
Count genes with LFSR < 0.05 for each of the 14 perturbations, excluding the Nontargeting control. Summing the bars counts gene-perturbation pairs, since a gene can be significant under multiple perturbations.
LFSR_BW = pd.read_csv(result_dir / "LFSR_BW.csv", index_col=0)
degs = (LFSR_BW < 0.05).sum(axis=1)
fig, ax = plt.subplots(figsize=(7, 2.8))
ax.bar(degs.index, degs.values, color="#FF7F00", width=0.72)
ax.set(xlabel="Perturbations", ylabel="DEGs (LFSR < 0.05)")
ax.set_ylim(-0.03 * max(degs), 1.14 * max(degs))
ax.spines[["top", "right"]].set_visible(False)
ax.tick_params(axis="x", rotation=45, length=0, labelsize=7.5)
ax.tick_params(axis="y", labelsize=7.5)
for tick in ax.get_xticklabels():
tick.set(ha="right", fontstyle="italic")
ax.xaxis.label.set_fontsize(9)
ax.yaxis.label.set_fontsize(9)
ax.xaxis.labelpad = ax.yaxis.labelpad = 6
for i, value in enumerate(degs):
ax.text(i, value + 0.018 * max(degs), str(value),
ha="center", va="bottom", fontsize=6.5)
fig.subplots_adjust(left=0.10, right=0.99, bottom=0.29, top=0.95)
save(fig, "05_degs_per_perturbation")
12. GO enrichment and neuronal terms¶
Rscript run_enrichment_factor.R
For each factor, the script selects genes with loading PIP > 0.95 and tests GO Biological Process enrichment against all 6,000 modeled genes. Both loading signs are included; BH FDR < 0.05 is applied separately per factor.
WebGestaltR::WebGestaltR(
enrichMethod = "ORA",
organism = "hsapiens",
enrichDatabase = "geneontology_Biological_Process_noRedundant",
interestGene = foreground,
interestGeneType = "ensembl_gene_id",
referenceGene = background,
referenceGeneType = "ensembl_gene_id",
minNum = 10,
maxNum = 500,
fdrMethod = "BH",
sigMethod = "fdr",
fdrThr = 0.05,
isOutput = FALSE
)
The script writes luhmes_out/enrichment/factor_go.csv and the figure below. Internet access is required; database updates may change results.
The saved analysis has 282 significant associations across 148 terms and 18 factors. Filtering neuronal terms after correction gives the 20 associations, 11 terms, and eight factors shown here.

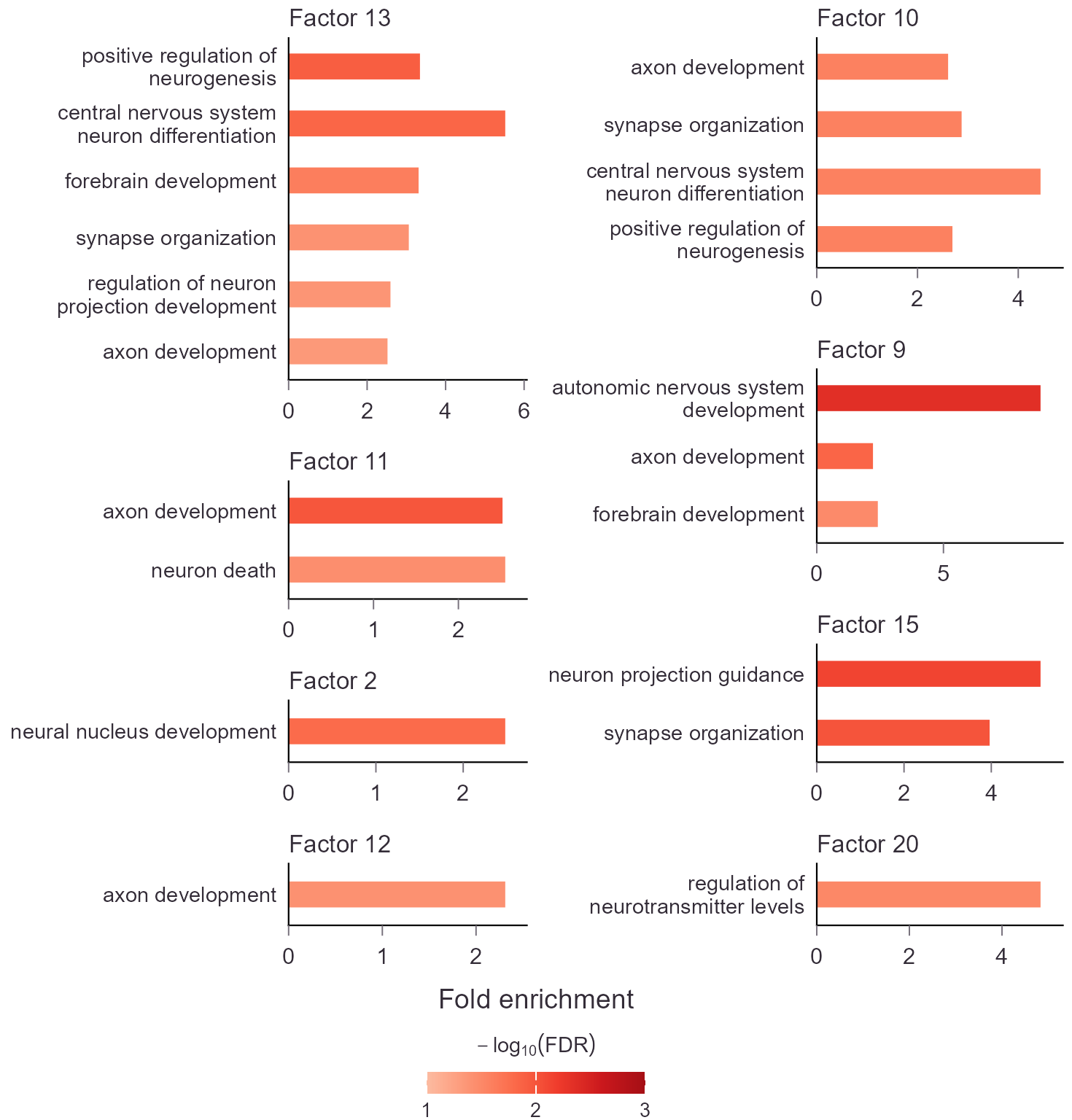

Bar length shows fold enrichment; each factor has its own x-axis range. Darker red means lower FDR. The color scale ends at FDR = 0.001 (-log10(FDR) = 3), so all smaller FDRs share the darkest red. This keeps very small FDRs from stretching the color scale; significance is still determined by FDR < 0.05.
